鍋爐拋料機是一種專門用于將固體燃料（常見的是生物質顆粒或碎料）均勻、連續地拋撒到鍋爐爐排上進行燃燒的自動化設備。

　　您可以把它想象成一個為鍋爐“喂食”的“機械手”，但它不是簡單地傾倒，而是通過一個旋轉的葉輪將燃料“拋”出去。

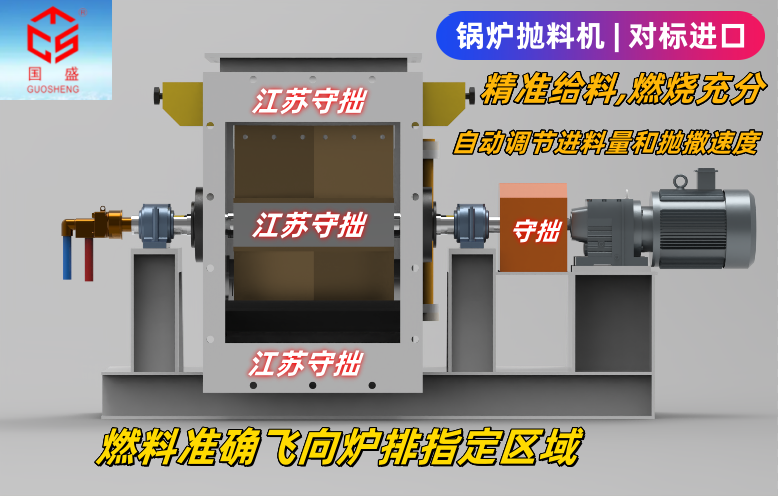

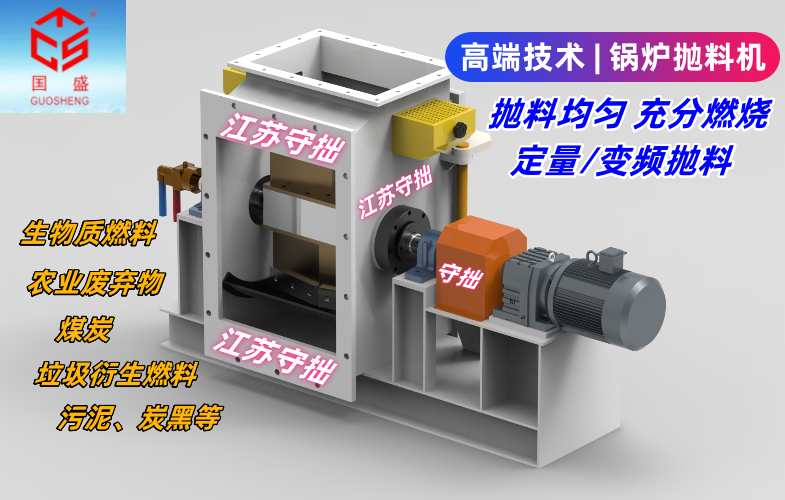

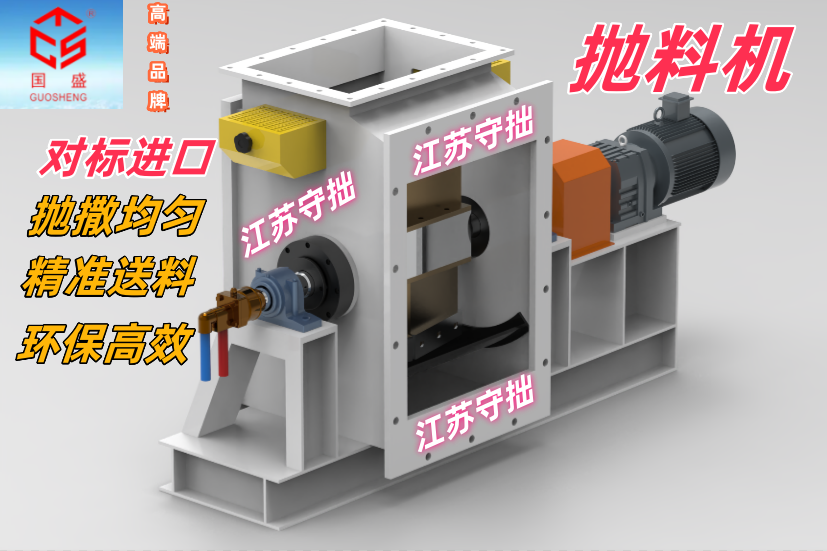

　　一、核心組成部分：

　　一臺典型的鍋爐拋料機通常包括以下幾個關鍵部分：

　　進料系統：通常由一個螺旋輸送機(絞龍)組成，負責將來自料倉的燃料穩定地輸送到拋撒機構。

　　拋撒機構：這是設備的核心。它由一個高速旋轉的葉輪(類似風扇)構成，葉輪在電機的驅動下，將螺旋輸送機送來的燃料通過離心力拋撒出去。

　　拋料管/導向槽：連接在拋撒機構出口的管道，用于引導被拋出的燃料準確地飛向爐排的指定區域。

　　驅動電機：為螺旋輸送機和拋撒葉輪提供動力。

　　控制系統：與鍋爐的主控系統連接，根據鍋爐的燃燒需求(如蒸汽壓力或溫度)，自動調節進料量和拋撒速度，實現精準給料。【電話/微信咨詢：陳經理18068546632】

　　二、主要特點與優勢：

　　自動化程度高：實現了鍋爐給料的完全自動化，大大降低了司爐工的勞動強度，無需人工頻繁上料。

　　燃燒效率高：通過均勻拋撒，燃料在爐排上鋪展得薄而均勻，與空氣接觸更充分，燃燒更完全，提高了鍋爐的熱效率，節省了燃料。

　　燃料適應性廣：特別適合燃燒生物質顆粒、木屑、碎木片、稻殼等形狀不規則的固體燃料。

　　爐排保護：避免了燃料直接砸向爐排，對爐排有一定的保護作用。

　　環保性好：由于燃燒充分，有助于減少黑煙、一氧化碳等不完全燃燒產物的排放。

　　三、主要應用場景：

　　鍋爐拋料機主要應用于使用固體生物質燃料的鍋爐系統，常見于：

　　工業鍋爐：為工廠提供工藝蒸汽或采暖熱源。

　　供暖鍋爐：用于學校、醫院、商場、住宅小區等區域的集中供暖。

　　生物質發電廠：作為鍋爐的核心上料設備。【電話/微信咨詢：陳經理18068546632】

　　四、與其它上料方式的區別：

　　為了更好地理解，我們可以對比一下常見的鍋爐上料方式：

　　與鏈條爐排的“前拱給煤”區別：傳統的鏈條爐排鍋爐，煤是從爐排前部由煤斗依靠重力落下。這種方式對于流動性好的塊煤有效，但對于輕質、蓬松的生物質燃料容易造成搭橋、堵塞。拋料機則能主動地將燃料“噴射”到爐排中后部。

　　與皮帶輸送機的區別：皮帶輸送機只是簡單地將燃料運送到爐膛入口并傾倒，無法實現均勻鋪撒，容易造成燃料堆積，影響燃燒效果。

　　鍋爐拋料機是現代生物質鍋爐系統中一個非常關鍵且高效的輔機設備。它通過機械拋撒的方式，解決了生物質等輕質、不規則固體燃料的自動化、均勻化給料難題，是提升鍋爐燃燒效率和實現自動化運行的重要保障。【電話/微信咨詢：陳經理18068546632】

　　The boiler spreader is an automated device specifically designed to evenly and continuously spread solid fuel, most commonly biomass particles or chips, onto the boiler grate for combustion.

　　You can think of it as a "robotic arm" that "feeds" the boiler, but instead of simply dumping it, it "throws" the fuel out through a rotating impeller.

　　1. Core components:

　　A typical boiler thrower usually includes the following key parts:

　　Feeding system: usually consists of a screw conveyor (auger) that is responsible for steadily delivering fuel from the silo to the dispensing mechanism.

　　Spreading mechanism: This is the core of the equipment. It consists of a high-speed rotating impeller (similar to a fan) driven by a motor. The impeller throws out the fuel sent by the screw conveyor through centrifugal force.

　　Throwing tube/guide slot: A pipe connected to the outlet of the throwing mechanism, used to guide the thrown fuel to accurately fly to the designated area of the grate.

　　Drive motor: Provides power for the screw conveyor and the dispersing impeller.

　　Control system: Connected to the main control system of the boiler, it automatically adjusts the feeding amount and spreading speed according to the combustion requirements of the boiler (such as steam pressure or temperature), achieving precise feeding.

　　II. Main Features and Advantages:

　　High degree of automation: The complete automation of boiler feeding has been achieved, greatly reducing the labor intensity of the stoker and eliminating the need for frequent manual feeding.

　　High combustion efficiency: Through uniform spreading, the fuel is spread thinly and evenly on the grate, allowing for more thorough contact with the air and more complete combustion, which improves the thermal efficiency of the boiler and saves fuel.

　　Wide fuel adaptability: It is particularly suitable for burning irregularly shaped solid fuels such as biomass particles, wood chips, crushed wood chips, and rice husks.

　　Grate protection: It avoids the fuel directly hitting the grate, which has a certain protective effect on the grate.

　　Environmentally friendly: Due to the full combustion, it helps reduce the emission of incomplete combustion products such as black smoke and carbon monoxide.

　　III. Main application scenarios:

　　The boiler thrower is mainly used in boiler systems that use solid biomass fuels, and is commonly found in:

　　Industrial boiler: provides process steam or heating source for factories.

　　Heating boiler: used for central heating in schools, hospitals, shopping malls, residential areas, etc.

　　Biomass power plant: as the core feeding equipment of boiler.

　　IV. Difference from other feeding methods:

　　To better understand, we can compare common boiler feeding methods:

　　The difference between the "front arch coal feeding" of the chain grate and the traditional chain grate boiler is that in the traditional chain grate boiler, coal falls from the front of the grate by gravity from a coal hopper. This method is effective for lump coal with good fluidity, but it is prone to bridging and blockage for lightweight and fluffy biomass fuels. The thrower can actively "spray" fuel to the middle and rear of the grate.

　　The difference between it and a belt conveyor is that a belt conveyor simply transports fuel to the entrance of the furnace and dumps it, without achieving uniform spreading, which can easily lead to fuel accumulation and affect combustion efficiency.

　　The boiler spreader is a crucial and efficient auxiliary device in modern biomass boiler systems. It solves the problem of automated and uniform feeding of lightweight and irregular solid fuels such as biomass through mechanical spreading, and is an important guarantee for improving boiler combustion efficiency and achieving automated operation.
